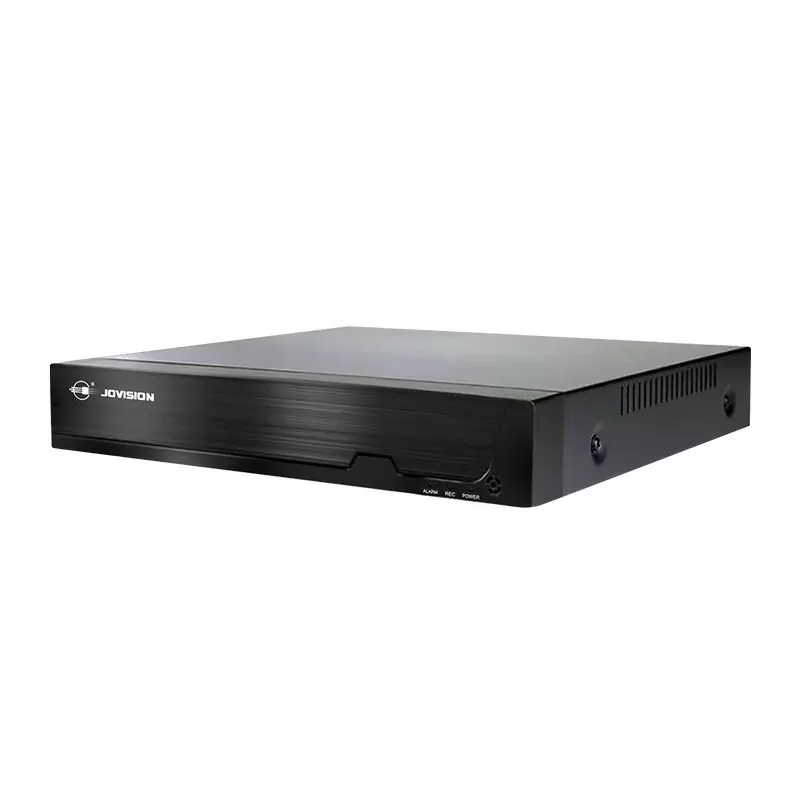

Jovision 16CH 5MN XVR System
16CH 5MN AHD/TVI/CVI/CVBS/IP 5-in-1 XVR. 1 SATA, Up to 8TB, Decoding Ability: 16*5MN@6fps (4 in 1), 16*4MN@8fps (4 in 1), 16*1080N@15fps (4 in 1)
-
2-Year Warranty
Estimate delivery times: 1-3 days (Victoria), 3-5 days (Interstate).
Guaranteed Safe Checkout
SKU |
JVS-XD2516-FC10T |
Category |
DVR |
Key Features
• TVI / AHD / DVR / NVR / CVI 5-in-1 function, multi-mode input, support HD analog video encoding, support HD analog + HD network video input, support pure HD network video input.
• Supports various mobile phone monitoring (iPhone Android).
• Support multiple web browsers (IE / Chrome / Firefox / Safari).
• Support VGA,HDMI output at the same time.
• Support STVI function(Need camera support STVI).
• Support coaxial audio
• Support multi-languauge
Specifications
| Model | JVS-XD2516-FC10T |
| System | |
| Compression | H.265 |
| O/S | Embedded Linux O/S |
| Video and Audio | |
| Video Input | 16CH,BNC |
| Preview Ability | 16*[email protected]（4 in 1）(support 12.5fps when camera is 5MP )16*4MN@15fps（4 in 1）(support 15fps when camera is 4MP)16*1080N@25fps（4 in 1） |
| Coding Ability | 16*5MN@6fps（4 in 1）16*4MN@8fps（4 in 1）16*1080N@15fps（4 in 1） |
| Decoding Ability | 16*5MN@6fps（4 in 1） 16*4MN@8fps（4 in 1）16*1080N@15fps（4 in 1） |

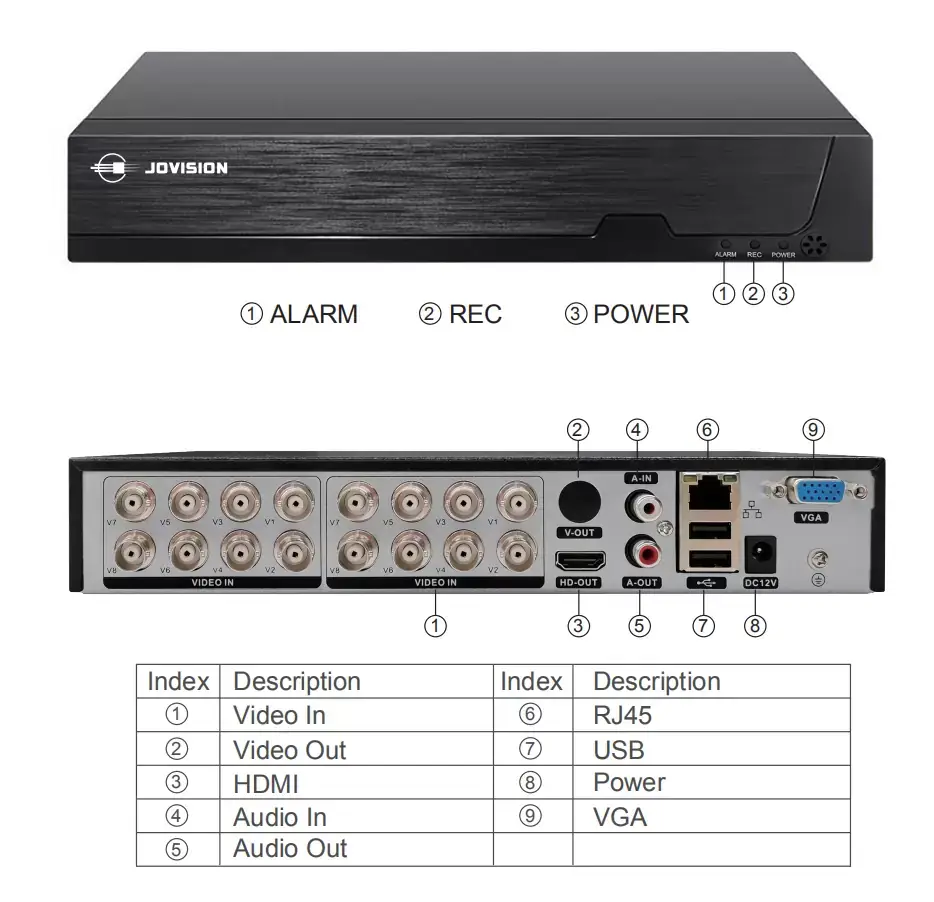

| Video Output | 1CH VGA;1CH HDMI |
| Channel Mode | Support any channel mode combination (5MN analog + 1080P digital) |
| Audio In & Out | 1/1, RCA |
| Video Standard | PAL/NTSC |
| Storage | |
| SATA | 1x SATA Interface |
| Capacity | Up to 8TB Max. |
| File Format | H.265 |
| Backup Mode | USB |
| Playback and Backup | |
| Video Playback | Auto/Timing/ Motion Detection |
| Sync Playback | 16CH |
| Search Mode | Point-in-time search, Calendar search, Event search, Channel search |
| Network | |
| Ethernet | 10 / 100 Mbps,1 RJ45 |
| Network Function | TCP/IP, DHCP, DDNS, NTP, SMTP |
| Interoperability | ONVIF Standard |
| Smart Phone | iPhone, Android |
| Hardware | |
| Network Interface | 1x RJ45 |
| USB Interface | 2x USB2.0 |
| Controlling Device | Mouse |
| Alarm Input | Not Support |
| Alarm Output | Not Support |
| Special | |
| Multi-Screen Display | 1/4/8/9/16 |
| Alarm Method | Email Alarm |
| Digital Zoom | Not Support |
| Two-Way Talk | Support |
| Alarm Snapshot | Support |
| Intelligent Analysis | Support Motion Detection、Video Tampering、Video loss |
| General | |
| Power Supply | DC12V/2A |
| Consumption | ≤8W（without HDD） |
| Working Temperature | -10°C ~60°C |
| Working Humidity | 10% ~ 90% Humidity |
| Dimensions | 250x223x42mm |
| Weight | 837g |
Description
| Brand | Jovision |
| Video Input | 16CH BNC |
| Compression | H.265 |
| H.D.D (SATA) | 1 |
| Capacity | Up to 8TB |
JVS-XD2516-FC10T 16CH 5MN XVR .pdf
Download
