Jovision Full-Color 6MP Security IP Camera with PoE & Audio
-
2-Year Warranty
Guaranteed Safe Checkout
SKU |
JVS-N617-UDL |
Category |
Bullet Cameras |
JVS-N617-UDL
6.0MP Full-Color Video & Audio PoE Network Camera

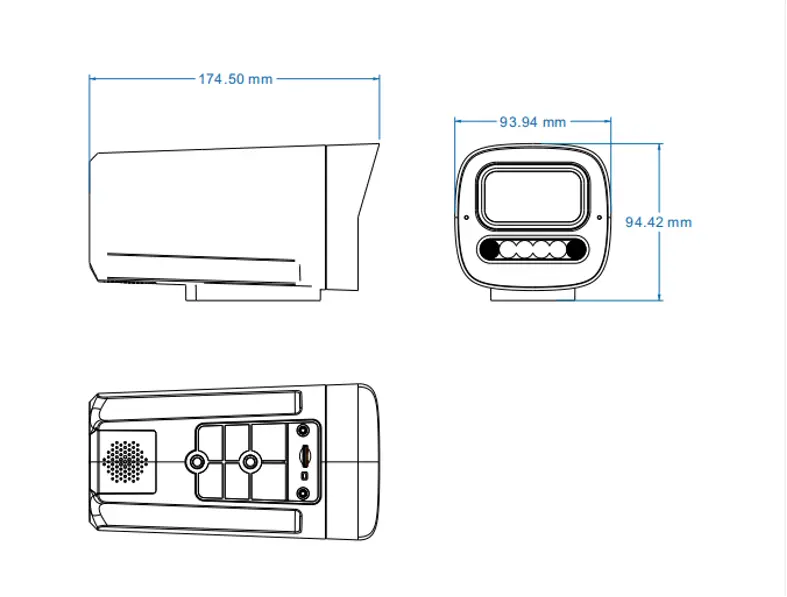

Dimension
|
Specifications |
|
|
Video |
|
|
Image Sensor |
1/3" CMOS Sensor |
|
Max Resolution |
3200*1800 |
|
Effective Pixels |
6.0MP |
|
Compression Standard |
H.264/H.265 |
|
Framerate |
25fps |
|
Bitrate |
Main Stream: 256Kbps ~ 10Mbps Sub Stream: 68Kbps~3072Kbps |
|
SNR (dB) |
49.3dB |
|
Min. Illumination |
0Lux (light ON) |
|
Interface Type |
M12 |
|
Lens |
3.6mm |
|
FOV |
3.6mm:H 81.5°, V 40.3°, D 93.8° |
|
Function |
|
|
Audio Codec |
G.711U/G.711A (default) |
|
Exposure Control |
Auto, HLC, BLC |
|
White Balance |
Auto |
|
Gain Control |
Auto |
|
OSD Information Setting |
Large font OSD, OSD flashing on alarm, OSD position settings |
|
SNTP |
Support |
|
Schedule Reboot |
Support |
|
Smart Defog |
Support |
|
Motion Detection |
Support Humanoid Detection & Vehicle Detection |
|
Image Setting |
Support Saturation, Brightness, Contrast, Sharpness adjustment |
|
Image Style |
Standard, Soft, Transparent |
|
Day and Night Function |
Auto, Always Black & White, Always Color, Scheduled Color |
|
Privacy Mask |
Support up 8 areas |
|
Night Vision Optimization |
Support |
|
WDR |
Support |
|
Screen Settings |
Screen mirroring, Screen flipping |
|
IP Adaptation |
Support automatic adaptation of IP address (Optional) |
|
Alarm Method |
Email Alarm, Client Alarm |
|
Remote Operation |
System, Audio and Video, Image, Alarm, Network management |
|
Audio Function |
Built-in Mic x 2 and Speaker x 1 |
|
VQC Technology |
Support |
|
SAFE Function |
Support |
|
Network |
|
|
Ethernet |
10/100Mbps Ethernet |
|
Stream |
2x Streams |
|
Network Protocols |
HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
|
ONVIF |
Standard ONVIF |
|
Network Transmission |
CloudSEE 2.0 |
|
Browser |
IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
|
User |
Up to 13 Users |
|
App |
Support iOS/Android |
|
General |
|
|
Lights |
6 White LEDs + 6 IR LEDs |
|
IR Distance |
Up to 60 Meters |
|
White Led Distance |
Up to 50 Meters |
|
Waterproof Level |
IP67 |
|
Power Supply |
DC12V or PoE (IEEE802.3af) |
|
Power Consumption |
<10W |
|
Working Temperature |
-30°C ~ 60°C |
|
Working Humidity |
5% ~ 93% Rh |
|
Color/Material |
Black & White/Metal + Plastic |
|
Dimensions (W x H x D) |
94.5x94x174.5mm |
|
Weight |
400g |
|
Installation Method |
Ceiling Mount, Wall Mount |
| Resolution | 6MP |
| IP Protection Rating | IP67 |
| Camera Type | Bullet Camera |
| Connectivity | PoE |
| Night Vision Range | Up to 60M |
| Special Features | Full Color |
