Jovision Full-Color 5MP Security IP Camera with PoE & Audio
5MP Super Full-Color Video & Audio PoE Network. Full Color Night Vision, Equipped with VQC Technology, F1.0 Aperture, 18x LEDs and Support Adaptive Dimming, Built-in Mic and Speaker, IEEE802.3af PoE, Ingress Protection: IP67
-
2-Year Warranty
Estimate delivery times: 1-3 days (Victoria), 3-5 days (Interstate).
Guaranteed Safe Checkout
SKU |
JVS-N519-PWL |
Category |
Bullet Cameras |
JVS-N519-PWL

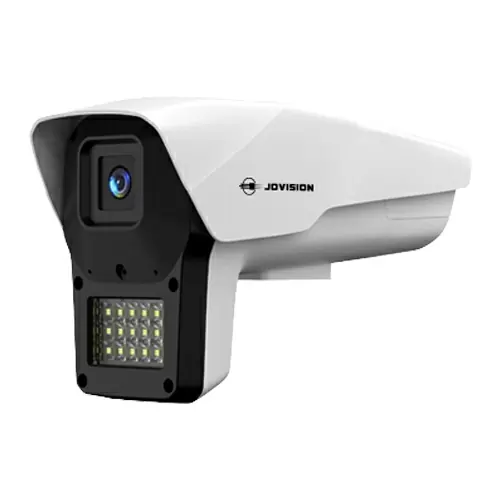

5MP Full Color PoE IP Camera (ColorNext Pro Series)
Features
- 5.0 Megapixel 2560x1792 Resolution.
- Full Color Night Vision.
- Equipped with VQC Technology.
- F1.0 Aperture.
- 18x LEDs and Support Adaptive Dimming.
- Built-in Mic and Speaker.
- IEEE802.3af PoE.
- Ingress Protection IP67.
Specifications
| CAMERA | |
| Image Sensor | 1/1.79" Progressive CMOS |
| Min. Illumination | IR ON 0 Lux |
| Day & Night | IR cut filter with auto switch |
| Lens | 3.6mm |
| FOV | H: 88.9°; V: 47.3°; D:103.7° |
| LEDs | 18 Pcs Warm LED |
| LED Range | Up to 65m |
| LED Adjustment | Adaptive Dimming |
| IMAGE | |
| Max Resolution | 2560x1792 |
| Frame Rate | 25fps |
| Video Compression | H.265/H.264 |
| Bit Rate (CBR/VBR) | Main Stream: 256 ~ 8192Kbps Sub Stream: 68 ~ 1024Kbps |
| Audio Compression | G.711a / G.711u |
| Image Setting | Saturation, Brightness, Contrast, Sharpness |
| Image Enhancement | BLC/HLC/3D DNR/Defog |
| White Balance | Auto |
| Privacy Mask | Support 8 Rectangle Areas |
| DWDR | Support |
| NETWORK | |
| Network Protocols | HTTP, TCP/IP, UDP/IP, ICMP, RTP, UDP, RTCP, SMTP, DHCP, DNS |
| Interface Protocols | Standard ONVIF, GB28181, CloudSEE |
| Auto IP Configuration | Support |
| Alarm Trigger | Motion Detection, Region Intrusion, Line Crossing |
| RTSP Video | Standard RFC2326, QuickTime/VLC Player etc. |
| Security | User security authentication, Reset, Hardware Watch Dog |
| Web Language | Chinese, English |
| Browser | IE8+, Chrome18+, Firefox5.0+, Safari5.02+ |
| INTERFACE | |
| Ethernet | 1 RJ45 10M / 100M Ethernet |
| Audio | Built-in Mic and Speaker |
| SD Card | Not Support |
| Reset Button | Not Support |
| GENERAL | |
| Power Supply | DC12V/2A, PoE IEEE 802.3af |
| Power Consumption | <3W (During day); <13W (At night) |
| Working Temperature | -20°C ~ 60°C |
| Working Humidity | 10% ~ 90% Rh Non-Condensation |

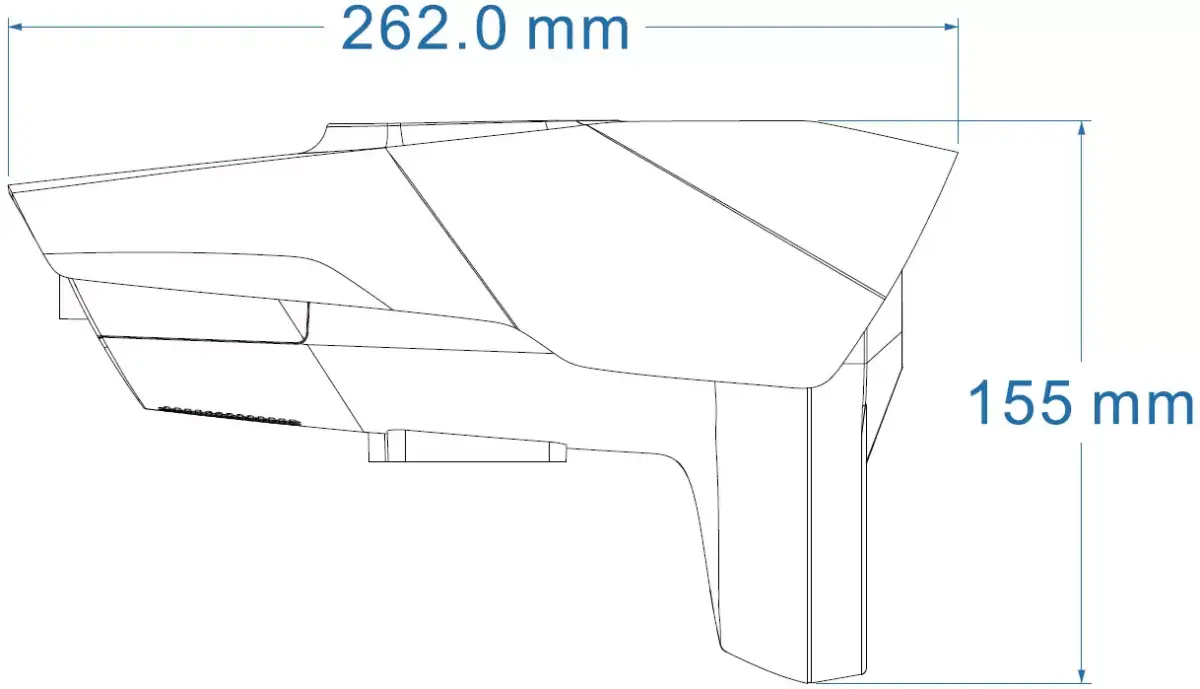

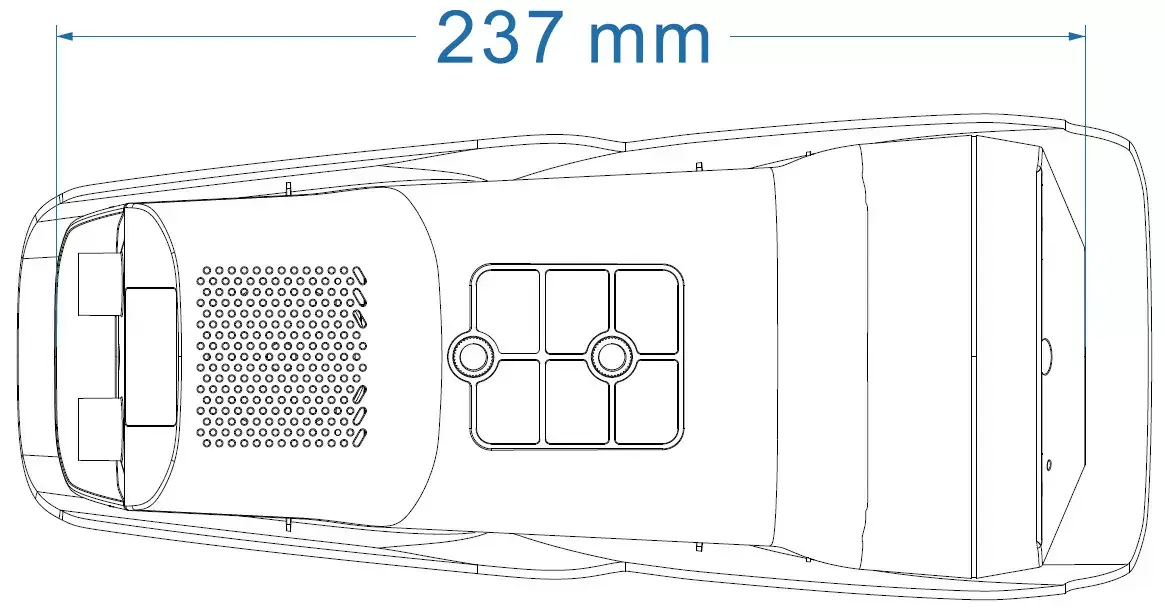

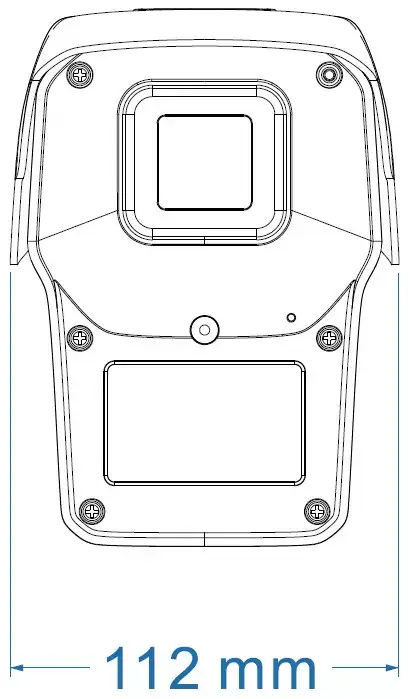

| Dimensions | 262x112x155(mm) |
| Product Weight | ≤700g |
| Color / Material | Front Shell: Black ADC12; Rear Shell: White PC |
| Installation | Wall, Ceiling |
| Resolution | 5MP |
| IP Protection Rating | IP67 |
| Camera Type | Bullet Camera |
| Connectivity | PoE |
| Night Vision Range | Up to 60M |
| Special Features | Full Color |
| Audio Function | Built-in Mic and Speaker |
JVS-N519-PWL 5MP Full Color PoE IP Camera (ColorNext Pro Series).pdf
Download
