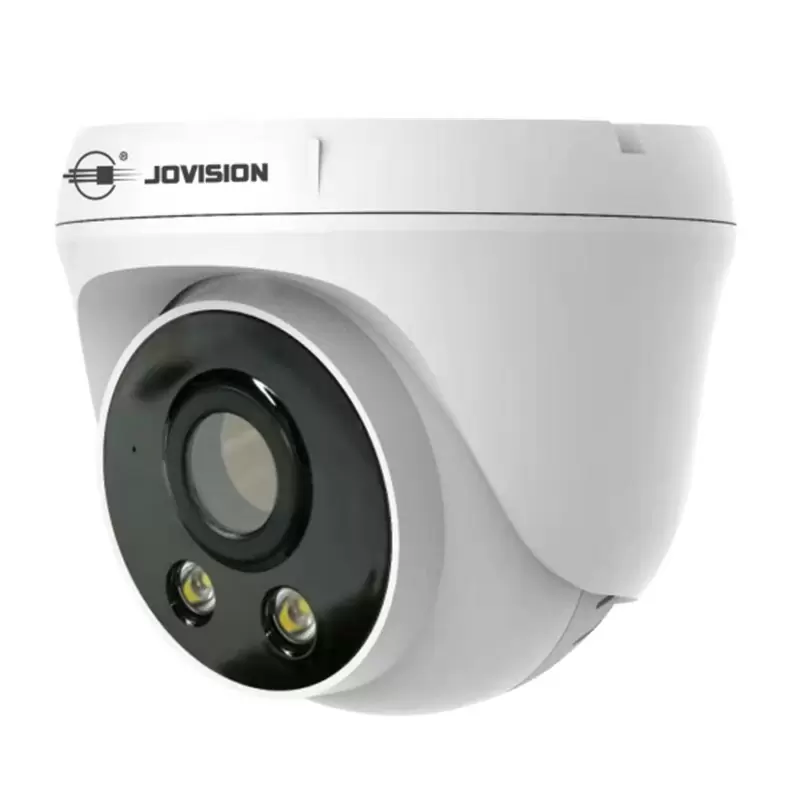

Jovision Full-Color 2MP Dome HD Camera & Audio
2MP Dome Full Color Camera with Mic. LED: 28µ x2PCS, IR range: 20M, Board Len 4mm/F2.0, Case: Plastic for indoor use, Ingress Protection: IP54
-
2-Year Warranty
Estimate delivery times: 1-3 days (Victoria), 3-5 days (Interstate).
Guaranteed Safe Checkout
SKU |
JVS-A836-HYC |
Category |
Dome |
Key Features
• 1/2.9" 2.0MP CMOS Sensor
• Resolution:1920x1080
• 2Pcs Warm LEDs, Light Range 15m.
• Support Digital Wide Dynamic Range
• Ingress Protection IP66
• Support UTC
• With built-in mic
Specifications
| Model | JVS-A836-HYC |
| Camera | |
| Image Sensor | 1/2.9" CMOS Sensor |
| Image Resolution | 1920x1080 |
| Effective Pixels | 2.0MP |
| TV System | PAL/NTSC |
| Signal mode | AHD/ TVI/ CVI/ CVBS |
| Electronic Shutter | Auto |
| S/N Ratio | ≥39dB |
| Scanning System | Progressive Scan |
| Lens | |
| Lens | Board Lens 3.6mm/F2.0 |
| Lens Type | Fixed |
| Auto Iris Support | N/A |
| Night Vision | |
| Warm LED | 28µ x 2Pcs |
| LED Light Distance | 15m. |
| IR Cut Filter | N/A |
| LED Status | Turn on below 7Lux |
| LED Control | Software Control |
| Day & Night | Full Color |
| Camera Features | |
| OSD Menu Language | Optional |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D DNR |
| Picture Adjustment | N/A |
| WDR | DWDR |
| OSD Support | Optional |
| Audio | Built-in mic |
| UTC | Optional |
| General | |
| Housing | Plastic |
| Bracket | Yes |
| Bracket | Yes |
| Operation Temperature | -10°C ~ 50°C |
| Working Humidity | 10% ~ 90% |
| Dimension | 105x90mm |
| Weight | ≤160g |

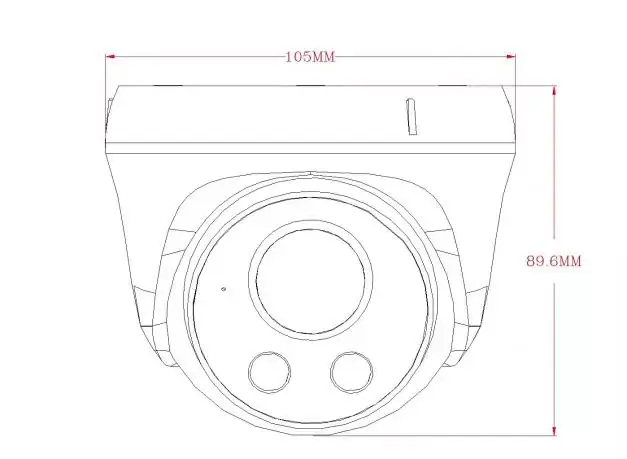

Dimension(mm)
| Resolution | 2MP |
| IP Protection Rating | IP66 |
| Camera Type | Dome Camera |
| Connectivity | Wired |
| Night Vision Range | Up to 15M |
| Audio Function | Built-in Mic and Speaker |
