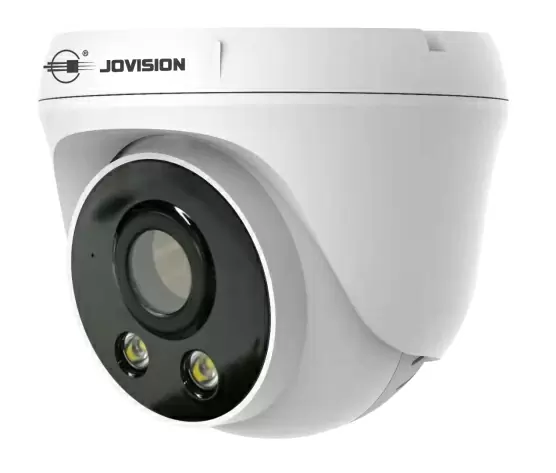

Jovision Full-Color 5MP Dome HD Camera & Audio
5MP Dome Full Color Camera with Mic. LED: 28µ x2PCS, IR range: 20M, Board Len 4mm/F2.0, Case: Plastic for indoor use, Ingress Protection: IP54
-
2-Year Warranty
Estimate delivery times: 1-3 days (Victoria), 3-5 days (Interstate).
Guaranteed Safe Checkout
SKU |
JVS-A536-HYC |
Category |
Dome |
Features
- 1/ 2.9" CMOS Sensor
- Resolution:2560x1944
- 2Pcs Warm LEDs, Light Range 15m.
- Support Digital Wide Dynamic Range
- Support UTC
- Support Audio
Specifications
| Camera | |
| Image Sensor | 1/ 2.9" CMOS Sensor |
| Image Resolution | 2560x1944 |
| Effective Pixels | 5.0MP |
| TV System | PAL/NTSC |
| Signal mode | AHD/TVI/CVI/CVBS |
| Electronic Shutter | 1/10s~1/100,000s |
| S/N Ratio | ≥39dB |
| Scanning System | Progressive Scan |
| Lens | |
| Lens | Board Lens 3.6mm/F2.0 |
| Lens Type | Fixed |
| Auto Iris Support | N/A |
| Night Vision | |
| Warm LED | 28µ x 2PCS |
| Infrared Distance | 15m |
| IR Cut Filter | N/A |
| LED Status | Turn on below 7 Lux |
| LED control | Software control |
| Day & Night | Full Color |
| Camera Features | |
| OSD Menu Language | Optional |
| White Balance | Auto |
| Gain Control | Auto |
| Noise Reduction | 3D DNR |
| Picture Adjustment | N/A |
| WDR | DWDR |
| OSD Support | Optional |
| Audio | Built-in mic |
| UTC | Optional |
| General | |
| Housing | Plastic |
| Bracket | Yes |
| Operation Temperature | -10oC ~ 50oC Rh 95% Max |
| Storage Temperature | -20oC ~ 60oC Rh 95% Max |
| Power Source | DC12V±10%,230mA |
| Dimension | 105mmx90mm |
| Weight | ≤160g |
| Brand | Jovision |
| Resolution | 5MP |
| Camera Type | Dome Camera |
| Connectivity | Wired |
| Night Vision Range | Up to 15M |
| Audio Function | Built-in Mic |
